Backdraft Catalyst Gen 2

This is a variant of the Backdraft Catalyst which has been designed with a more modular approach.

With a 4 position switch, you can adjust delay, dwell, primary selector position, and secondary selector position.

This makes it possible to run your gun with any fire modes in any positions, instead of only being able to change your secondary fire mode. (Burst and Binary, for example, can be primary and secondary fire modes instead of always having the primary fire mode set to semi-auto)

You can also adjust your delay and dwell with actual numerical values, and by holding the + button for 3 seconds, it will blink the LED and read out your setting.

Unlike other blink-to-read systems, it's very easy to understand. It blinks one LED for the TENS place, and another for the ONES place. For example, 1 blink on the "tens" led and 3 blinks on the "ones" led, would mean a reading of 13 milliseconds

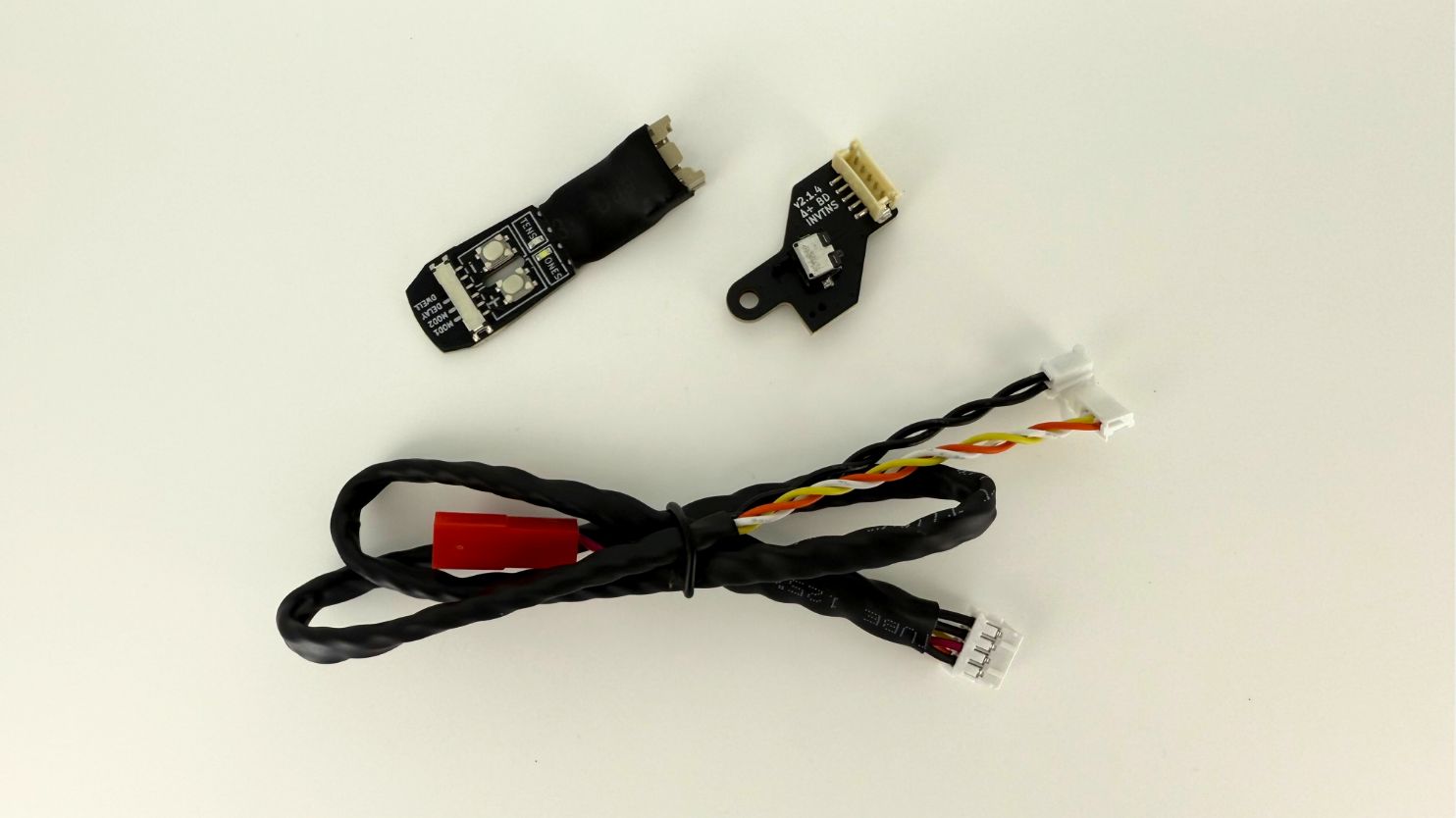

INCLUDED PARTS:
FCU

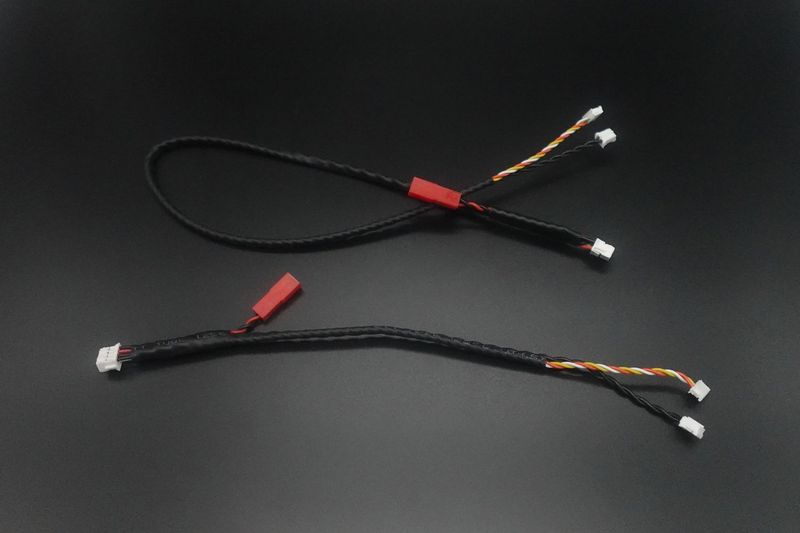

WIRE HARNESS (Long or Short)

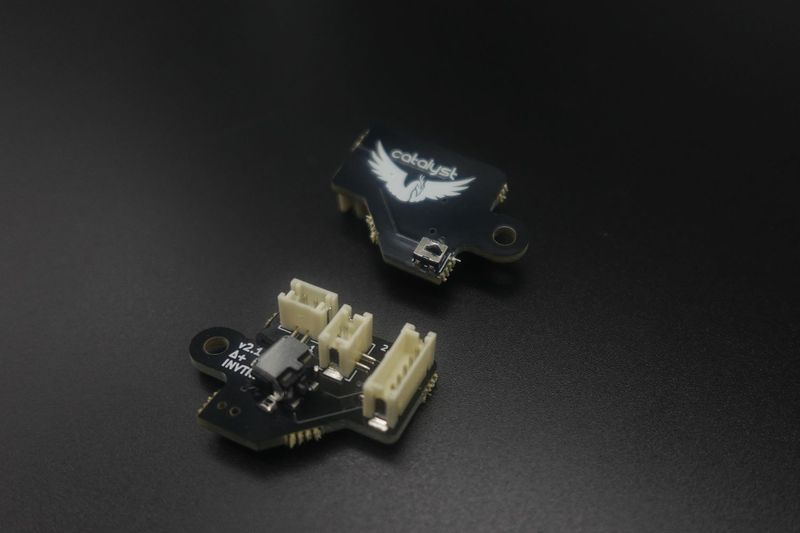

TRIGGER BOARD (v2 or v3)

This FCU is compatible with polarstar trigger boards, meaning that any existing trigger polar star compatible boards can be used with this FCU!

Backdraft engines use a simpler trigger board, so the included trigger board will not work with polar star electronics. For an additional fee the polar star connectors can be added to the trigger board to add polar star compatibility.

Currently we have v2 and v3 trigger boards available for purchase
